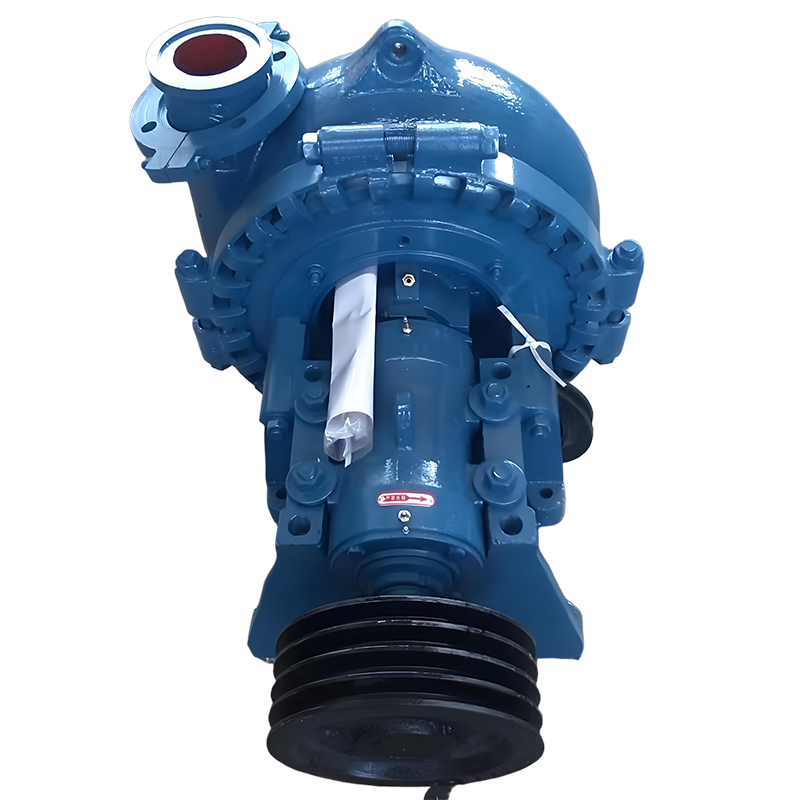

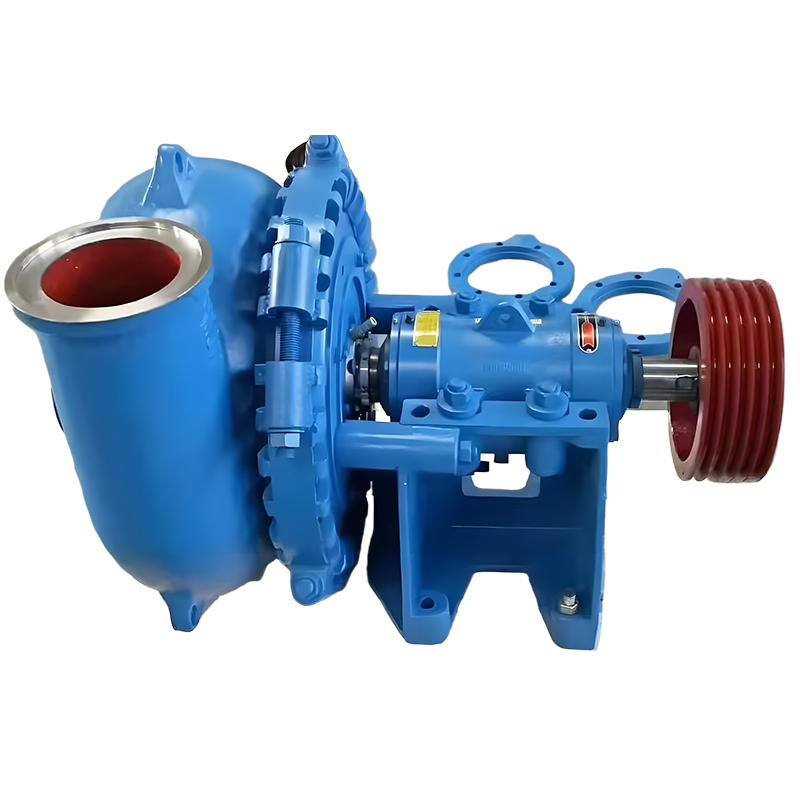

SSG gravel pump is single stage, single suction, cantilever, horizontal structure. The pump body, the pump cover and the joint plate are connected by the clamp belt. The lubrication form is grease lubrication. It is mainly used for conveying strong abrasive materials whose particles are too large to be transported by general slurry pumps. Widely used in coal, electricity, transportation, river dredging, municipal engineering and other fields. This type of pump is suitable for conveying sand, mud and solid slurry with large particles, and is also used for river sand mining and mining vessels.
Pump and drive machine can choose direct transmission, triangular belt transmission, hydraulic coupling transmission, reducer transmission. The pump outlet direction can be in any position of 360°, with easy installation, good cavitation, abrasion resistance and other advantages. The inlet of each type of pump is horizontal, and the pump rotates according to the direction of transmission, and can also rotate counterclockwise according to the need.

★ Flow rate: 36-4320m³/h
★ Head: 5-80m
★ Power: 60-1200kw
★ Size: 100-400mm
★ Size: 6/4•8/6•10/8•12/10•14/12•16/14•18/16•20/18
★ Provide metal parts.
